ALFRA Electro-hydraulic pump.S version

 recommended to supply hydraulics to the AP 250 & AP 400

models of cabinet production punchers.

These pumps have been developed to deliver the essential

hydraulics needed to efficiently operate their counter part devices.

Capable of production run requirements these units are virtually

maintenance free and are available in either 240 V or 110 V options.

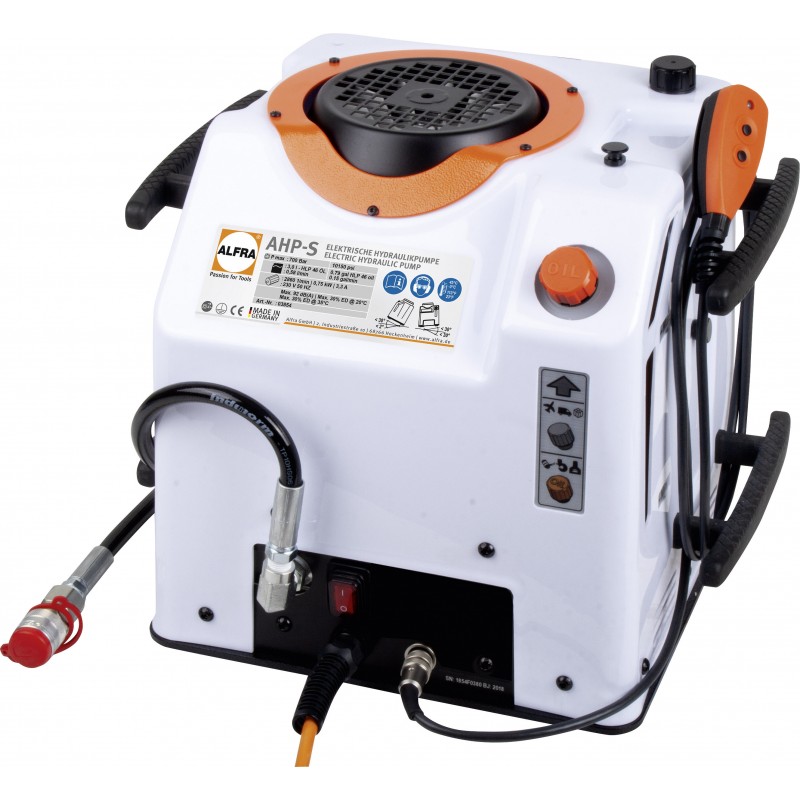

Electro-hydraulic pump AHP-S

Technical Data:

Max Pressure:  700 bar

Max Flow rate:  0.58 L/min

Oil Type:  HLP 46

Filling Volume:  3.2 L

Working Volume:  2.2 L

Weight:  27 KG

Voltage:  230 V  or 110 V options

Power:  0.75 kW

Current consumption:  3.26 A

Motor speed:  2800 rpm

For full technical specifications please click here  >>>
