DISCONTINUED...SEE NEW VERSION AHP-C

ALFRA Electro-hydraulic pumps. New generation.

Latest version of the M1 pump with added connectivity to the

new gen bus bar Cutter 03250.L via the new gen safety foot switch.

These pumps have been developed to deliver the essential

hydraulics needed to efficiently operate their counterpart

devices such as Bus bar benders, punchers & cutters.

Capable of production run requirements these units are virtually

maintenance free and are available in either 240 V or 110 V options.

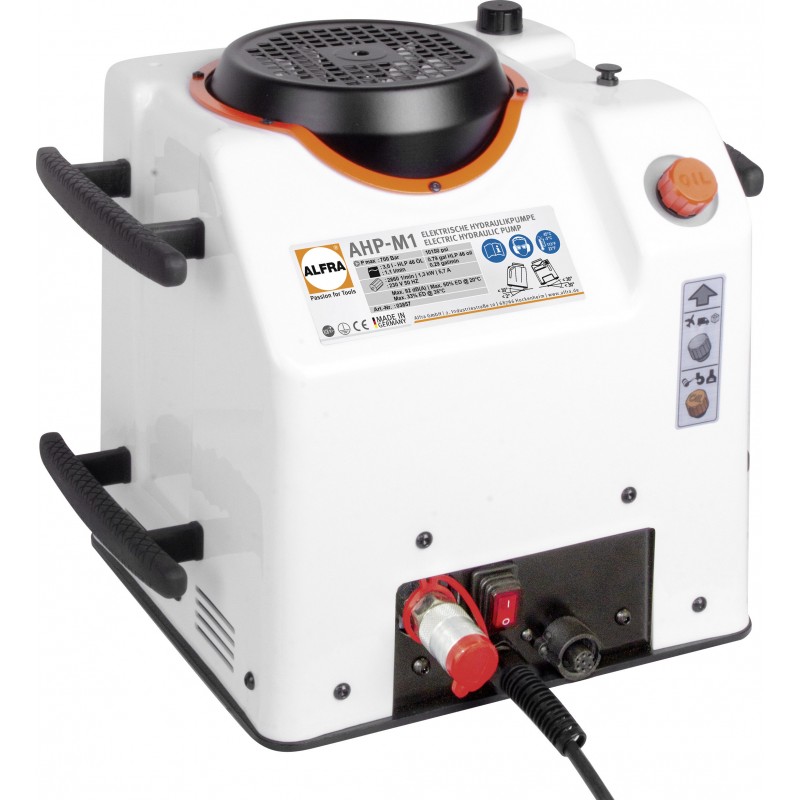

Electro-hydraulic pump AHP M1

Technical Data:

Max Pressure:  700 bar

Max Flow rate:  1.1 L/min

Oil Type:  HLP 32

Filling Volume:  3.2 L

Working Volume:  2.2 L

Weight:  29 KG

Voltage:  230 V  or 110 V options

Power:  1.3 kW

Current consumption:  3.26 A

Motor speed:  2800 rpm

For full technical specifications please click here  >>>
