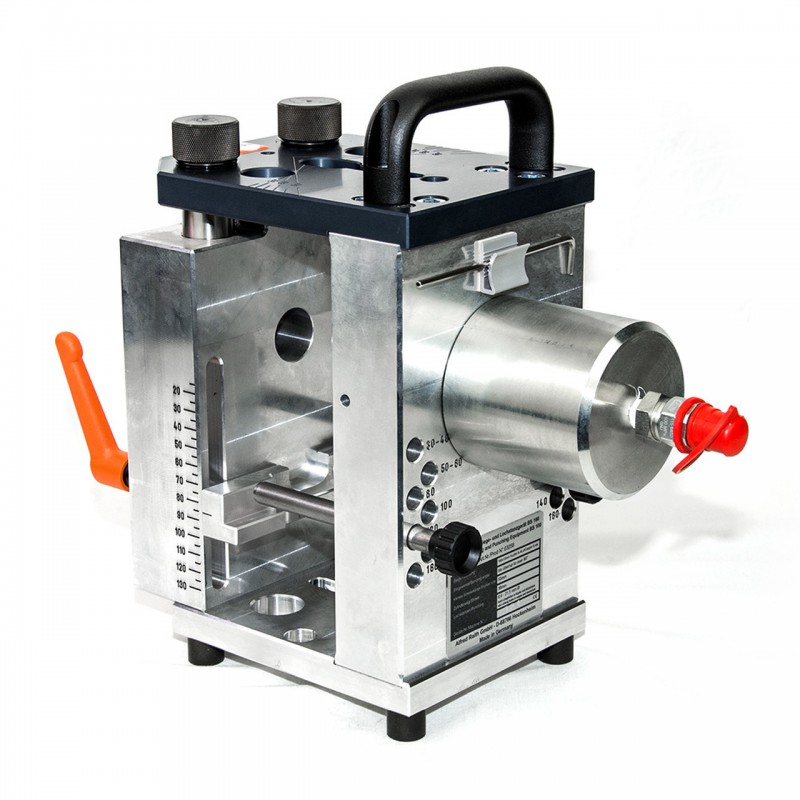

The device consists of a base frame made of special aluminium and a hydraulic cylinder up to 600 bar.
The angle measurement scale is engraved on the top section,supplied with R=11 mm & R=5 mm dies
bends up to a maximum 160 mm width are possible.
Quick and simple change over from bending to punching.
R=5 mm Die for Bus bar 3-8 mm ( optional Extra )
R=11 mm Die for Bus bar 9-12 mm.. supplied part.
- 160 mm x 12 mm Bending Capacity
- 6.6 mm Up to 21.5 mm Punching Capacity
- This device comprises of a base frame made of a special aluminium and a hydraulic cylinder up to 8700 Psi (600 bar).
- The angle allocation is engraved at the upper part.
- The conversion from bending to punching is simple and easy.
- Recommended driver pump AHP-S Part 03854 , Foot pump Part 02121
Dimensions L x W x H: 390 x 150 x 330 mm.
Weight: 20KG
