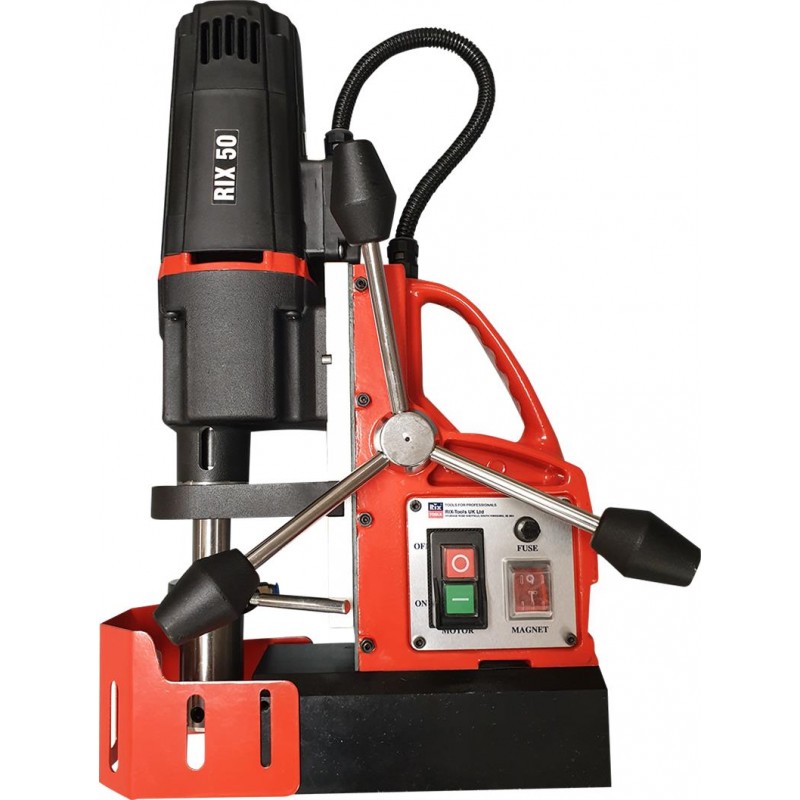

RIX50  is a mid sized magnetic broach unit with an impressive 50.0 Ø max core cutting capacity.

Fitted with a Quality Eibenstock ( Germany ) motor with a high & low 2 speed gear box, the RIX50 is ideal for both small and larger drilling applications.

Select the high gear when drilling up to 35.0 mm Ø and select the low cutters for sizes 36 -50.0mm Ø.

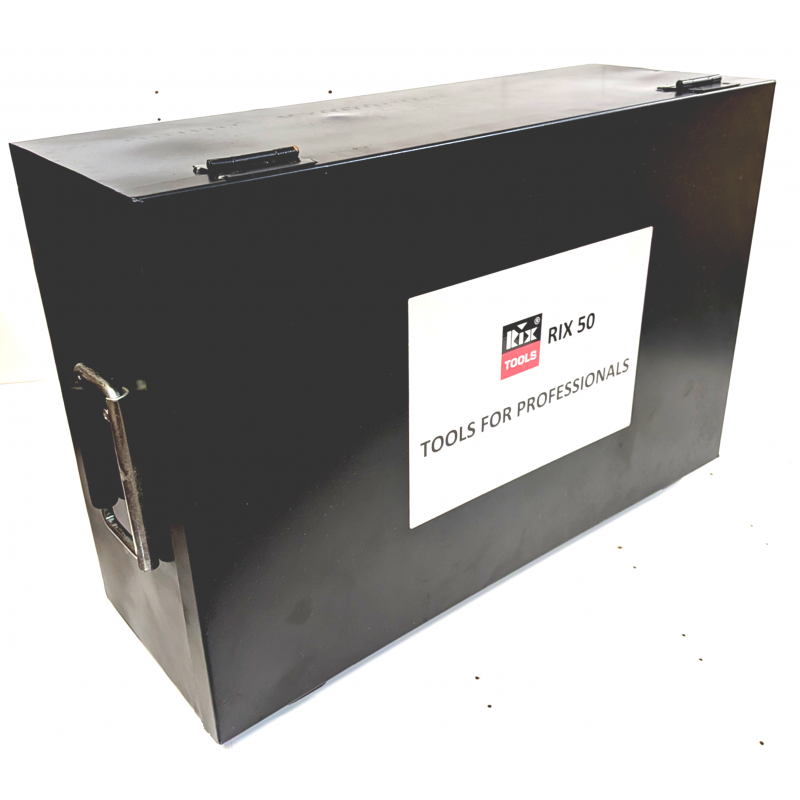

Supplied complete with coolant tank, 2MT Weldon Tool Holder, guard, safety strap, user instructions and steel transport case.

Available in 110V & 240V options.

Core Capacity 12-50.0mm Ø

Taper Shank Drill Capacity 23.25mm ( 2MT )

No Load speeds 450 & 250 rpm.

Stroke 105mm

Tool force /magnetic adhesion 1200N

Magnet footprint 100 X 200mm

Mount 2MT

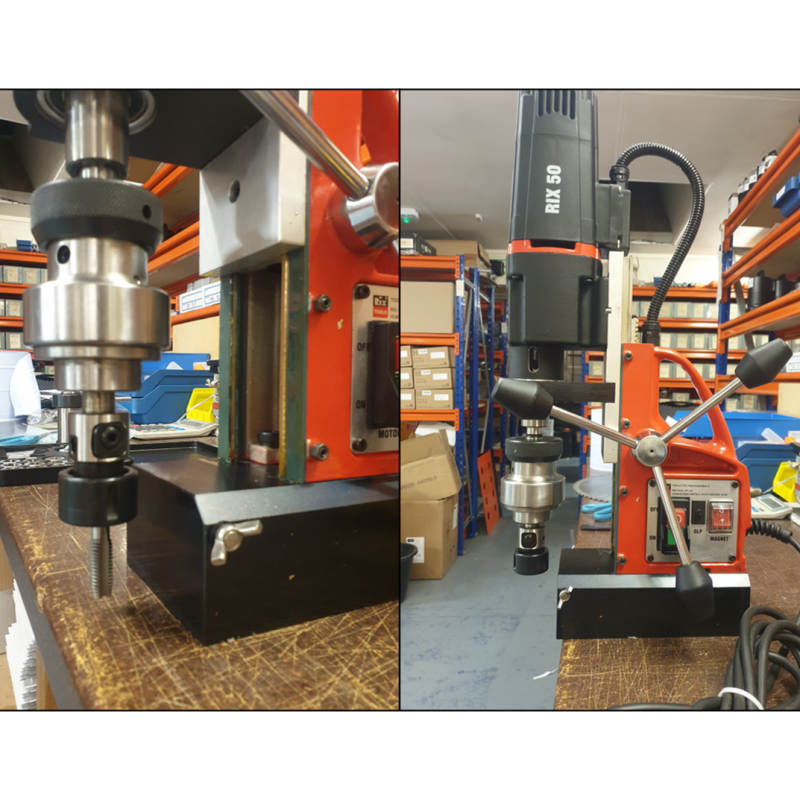

Tapping M3-M12 with optional 18652 Tapping attachment

Weight 17.5KG
