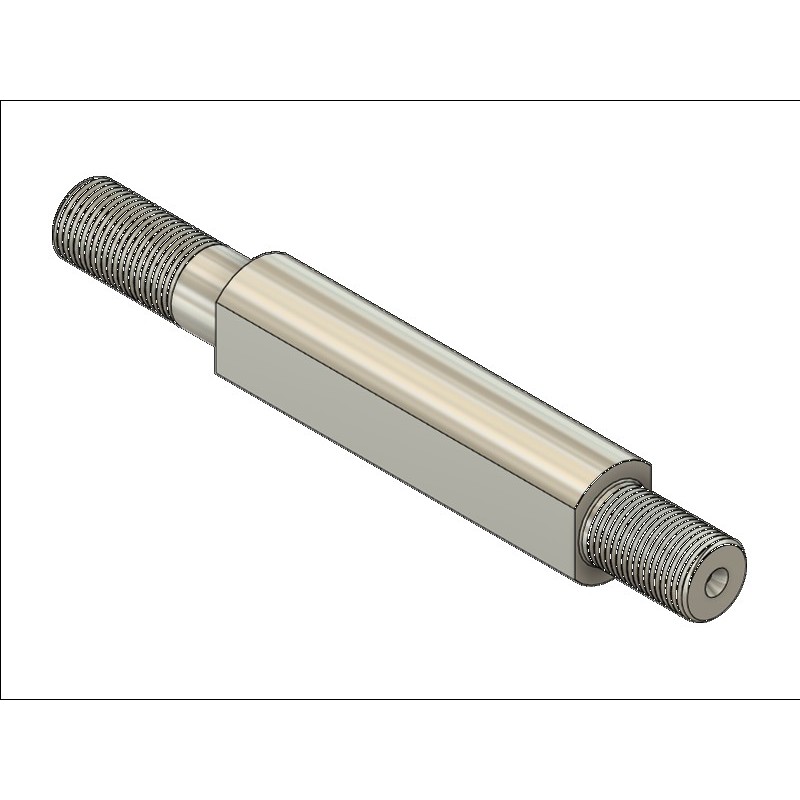

RIX  High tensile draw bolts with flattening use with appropriate

rectangular punchers.

419001 : USE WITH 25.4mm SQ, 21.8 X 25.8mm RECT, 22.0 X 30.0mm RECT, 22.0 X 42.0mm RECT

22.0 X 45.0mm RECT, 25.0 X 50.0mm RECT, 25.1 X 29.0mm RECT ( Normal & S/Steels )

37.7 X 34.9mm RECT, 24.0 X 43.0mm RECT, 24.0 X 65.0mm RECT. 30.5 Ø with 4 notches ( Special Punch )

419002 : USE WITH:12.7mm SQ, 15.8mm SQ,11.2 X 22.2mm RECT ( Normal & S/Steels )

419003 : USE WITH:19.0mm SQ, 21.3mm SQ, 22.2mm SQ, 24.0mm SQ, 17.0 X 19.0mm RECT, 19.1 X 33.0mm RECT  ( Normal & S/Steels )

419004 : USE WITH: HYD CYLINDERS & MANUAL HYD PUNCHER 45.5mm SQ, 46.0mm SQ ,  33.3 X 66.7mm RECT, 24.0 X 86.0mm RECT, 24.0 X 112.0mm RECT

419005: USE WITH: HYD CYLINDERS ( With spacer 409361 ) & MANUAL HYD PUNCHER( with spacer 40362 ) 50.8mm SQ,68.0mm SQ, 45.0 X 92.0mm RECT, 46.0 X 92.0mm RECT,57.2 X 88.9mm RECT

36.0 X 52.0mm RECT,36.0 X 65.0mm RECT,36.0 X 86.0mm RECT,36.0 X 91.0mm RECT, 36.0 X 112.0mm* RECT( Normal steel only* ) 46.0 X 86.0mm RECT.

419006 : USE WITH: HYD CYLINDERS: 82.0mm SQ,92.0mm SQ,105.0mm SQ, 125.0mm SQ,138.0mm SQ, 36.0 X 112mm* ( Stainless Version* )

46.0 X 112mm RECT,57.15 X 133.35mm RECT,60.0 X 112mm RECT,68.0 X 138.0mm RECT,74.0 X 86.0mm RECT, 79.0mm X 120.0mm Rect.

419016 : USE WITH : MANUAL HYD PUNCHER:  82.0mm SQ,92.0mm SQ,105.0mm SQ, 125.0mm SQ,138.0mm SQ, 36.0 X 112mm* ( Stainless Version* )

46.0 X 112mm RECT,57.15 X 133.35mm RECT,60.0 X 112mm RECT,68.0 X 138.0mm RECT,74.0 X 86.0mm RECT, 79.0mm X 120.0mm Rect.
